EDX01 | External load system
with manual emergency release

HEC | external loads | abseiling | fast roping

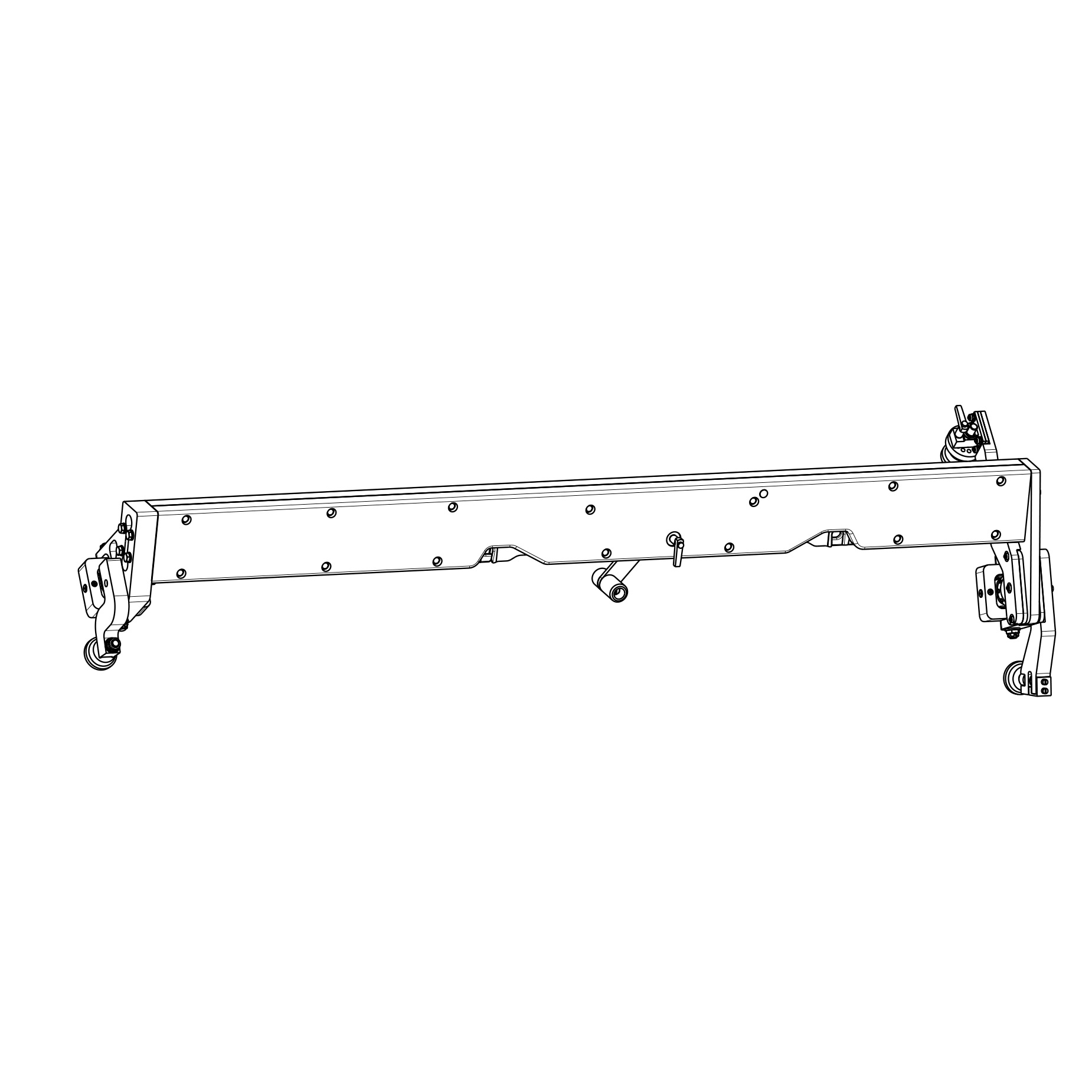

The EDX01 is an external load system for helicopters of the type EC 155. It is attached above the rear cabin doors (one or both sides) and offers two attachment points / couplings for rope systems per device.

Features

  • Simultaneous operation of four couplings per helicopter (one device per side)
  • High payload of up to 280kg plus 25kg rope weight per coupling
  • Manual (or pyroelectric) emergency release under maximum load
  • No modification to the helicopter required
  • Low system weight (<24kg per device)
  • NVG friendly

Aviation approvals

Type Authority
EC 155 EASA

Compatible equipment

Downloads

Product data sheet
Downloadcenter
Do you need further information?

Contact us

Please contact us for further product information as well as price and delivery time information.
